Pilot Light

 Purchased a red jeweled lens for the pilot light

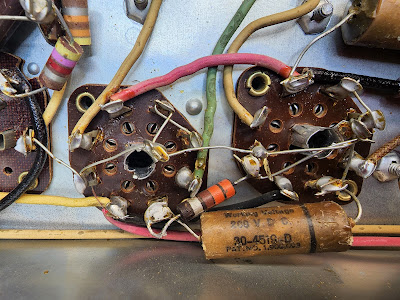

Some Closeup Pictures to Make it Easier to Reinstall Components



New Knob Approved by Owner

 This a brass knob to go on the cover of the cabinet. Plan to leave it bare so the patina will develop.

Un-stuffing Paper Capacitors



Start with a capacitor with the leads cut off

Put some tape on it to protect the finish

Start gouging each end out with a Xacto knife

The guts coming out

Look Ma, no guts

Shell waiting for new guts

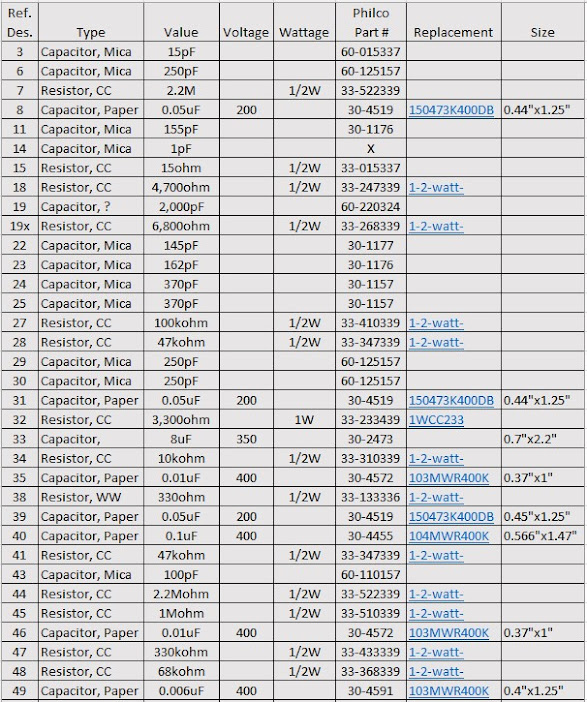

Parts List



Tube Testing and Some More Pictures

 Both 7B7 tubes are weak...

Speaker is in great shape at least physically. We'll see how it performs when the radio is done.

Grill cloth is in good shape but a bit faded were it was exposed to the light. Would be nice to replace to get the color back but I have not found this cloth available...

Some weird peeling on the inside of the speaker grill, need to investigate a bit before deciding what to do.

Bought these to make the pilot light lens.

One last Cowpasture...

 This guy is mounted inside the chassis and looked so cute I decided to re-stuff him.

Drill out that one rivet

Tape on to protect the finish

Drill out guts

Stuffed and ends sealed with brown hot glue

Mounted in chassis with brass hardware, leads will be connected when other components are replaced

More work on Electrolytic Cowpastures and Whatnot

 So, the title needs some explanation. Many moons ago when working for E-Systems a fellow engineer called large value capacitors "cowpastures" because on the real estate needed by them. Well, the name stuck in me...

Philco had these packaged capacitors for line filtering that needed to be restuffed.

A peek at the grill cloth...

Things to Do

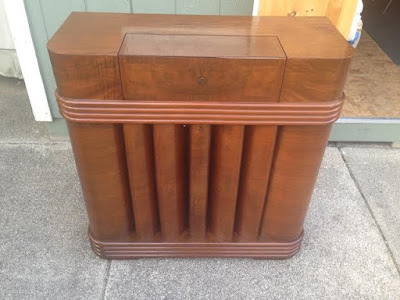

1. Refinish cabinet

    a. New grill cloth?

    b. Use lacquer

    c. Strip/sand - spray of brush?

2. Research

    a. New cover knob

    b. Front pilot light

3. Re-cap chassis

    a. Electrolytic caps

        1. Re-stuff 2

        2. Replace 3rd (in chassis)

    b. All paper caps

    c. Mica cap probably OK, check?

4. Check all resistors

    a. Maybe just replace them all

5. Test and replace Tubes

6. Clean and refurbish chassis

7. Do RF and IF alignment

8. New power cord

9. Replace missing push button covers

10. Provide all documentation when done

11. Make parts list

12. Update blog

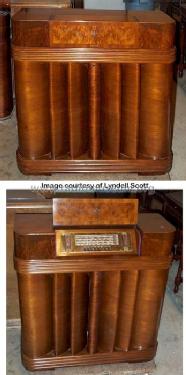

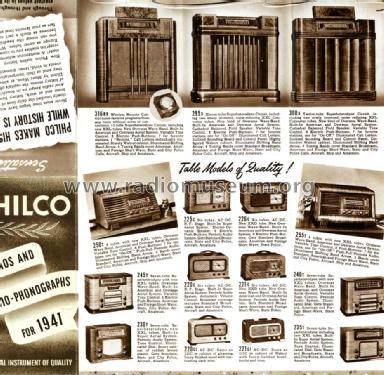

Some pictures off the Internets

Just some shots off the Internets to help determine a few things such as the knob and the pilot light.

 Some recommendations from one of the old radio forums
